SPECIFICATIONS

Battery Test Type: AGM, Flooded, Gel, Lead-Acid, VRLA

Brand Name: ANCEL

Function 1: ANCEL BM200 Battery Analyzer Battery Load Charging Cranking Test

Function 10: Engine starting detection automatically

Function 11: Car location seeking

Function 12: Trip record with map and route

Function 2: Bad Cell Detection, LCD Display, Multi-Language Interface

Function 3: Battery Health Monitor

Function 4: Checks Cranking System

Function 5: Short-circuit and reverse connection protectionShort-circuit and reverse connection protection

Function 6: Shows historical data graphically

Function 7: Support multi-battery management

Function 8: Fit for iOS and Android

Function 9: Checks Charging System (alternator)

Function13: Battery Analyzer

Function14: battery monitor

Function15: Battery Tester

Function16: automotive battery test

Function17: car battery tester

Hign-concerned Chemical: None

Origin: Mainland China

Voltage: 12V

Product Description

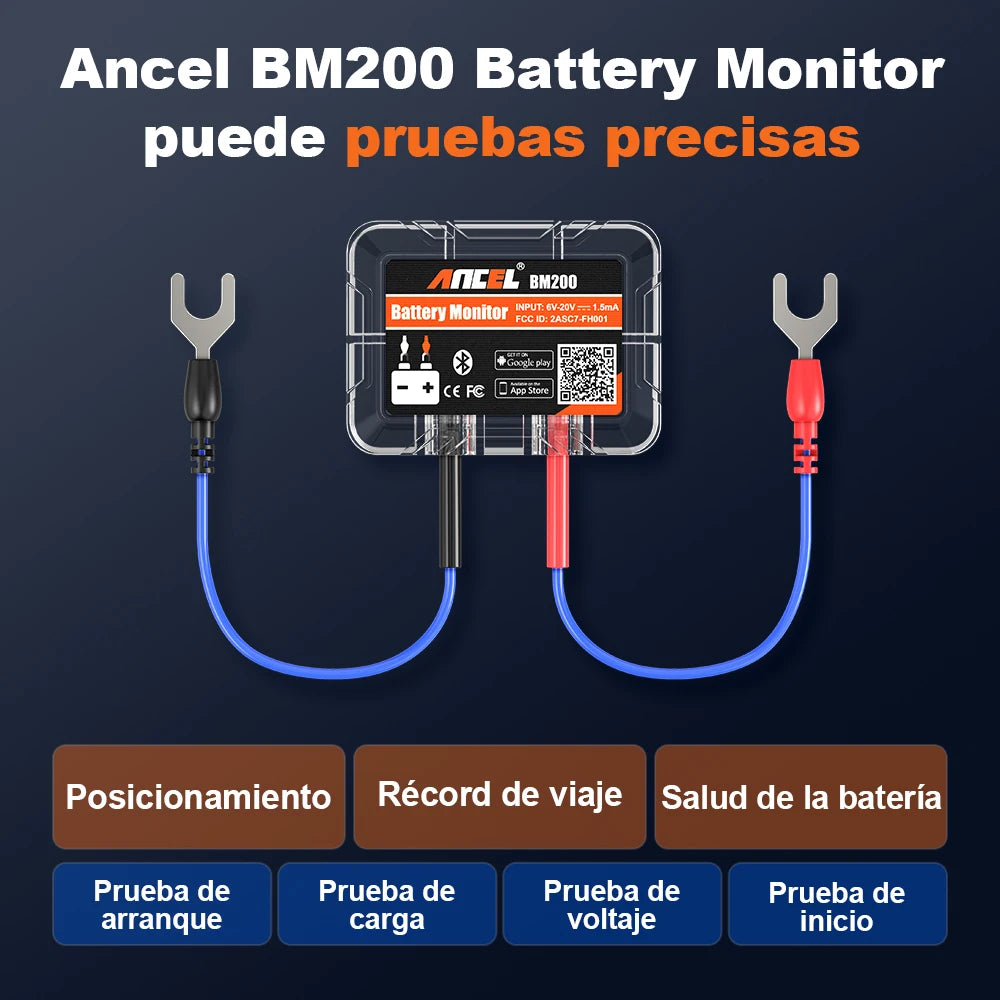

ANCEL BM200 Main Functions:

● Receives notifications of battery conditions in Bluetooth range.

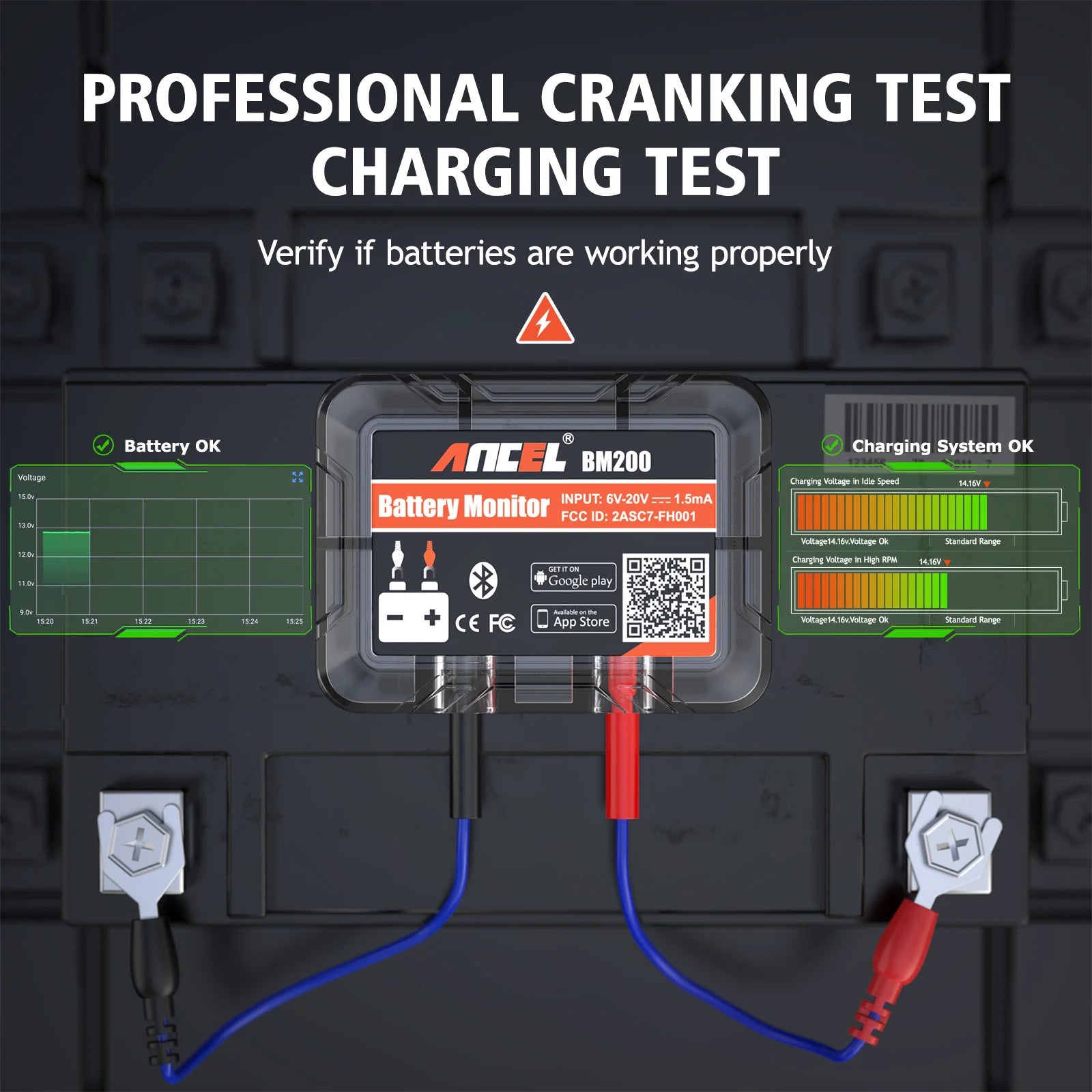

● Checks vehicle cranking system automatically while engine is starting.
● Checks charging system (alternator)
● Lists the time of each driving.
● Alerts mobile phone if detects abnormal data.
● Short-circuit and reverse connection protection.
● Data stored in battery monitor up to 30 days if out of sync.
● Automatic synchronization when in Bluetooth range.
● Compatible with all 12V vehicle batteries.
● Shows historical data graphically.
● Engine starting detection automatically.
● Free app for iOS and Android.
● Support multi-battery management
● Exclusive private account, data will not be lost
● Car location seeking function via google map.
● Trip record with map and route.
● Works with all 12V batteries. /Wireless (Bluetooth 4.2) in10 meter. / Software included for Android and iPhone. /All Apps for Android and iPhone are designed by ourselves,download for free via Internet.

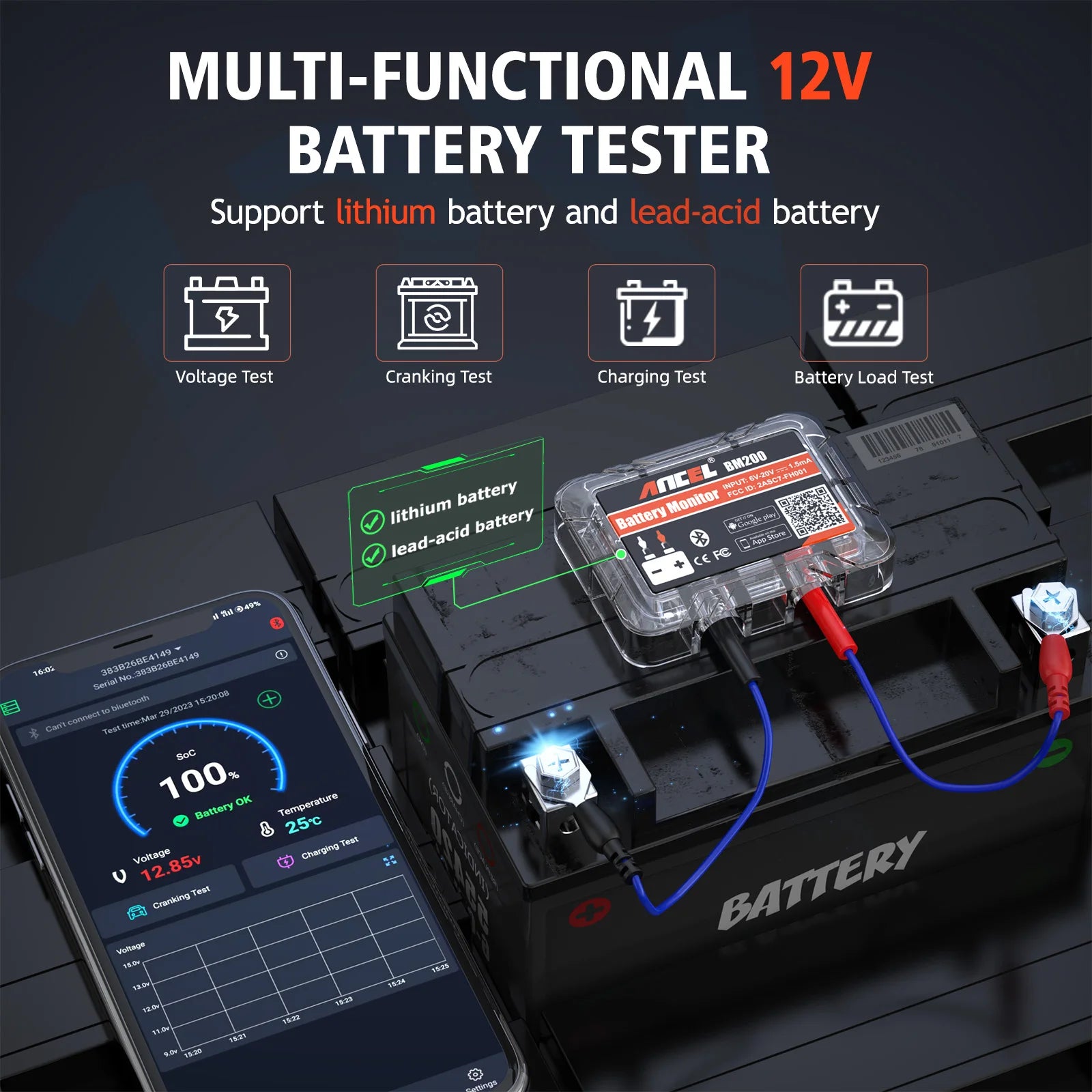

Compatible With All 12V Battery

12V Battery Tester & Monitor

● Real-time monitoring of battery health to protect the vehicle
● battery level
● battery temperature
● battery voltage

ANCEL BM200 Support Multi-mode Test

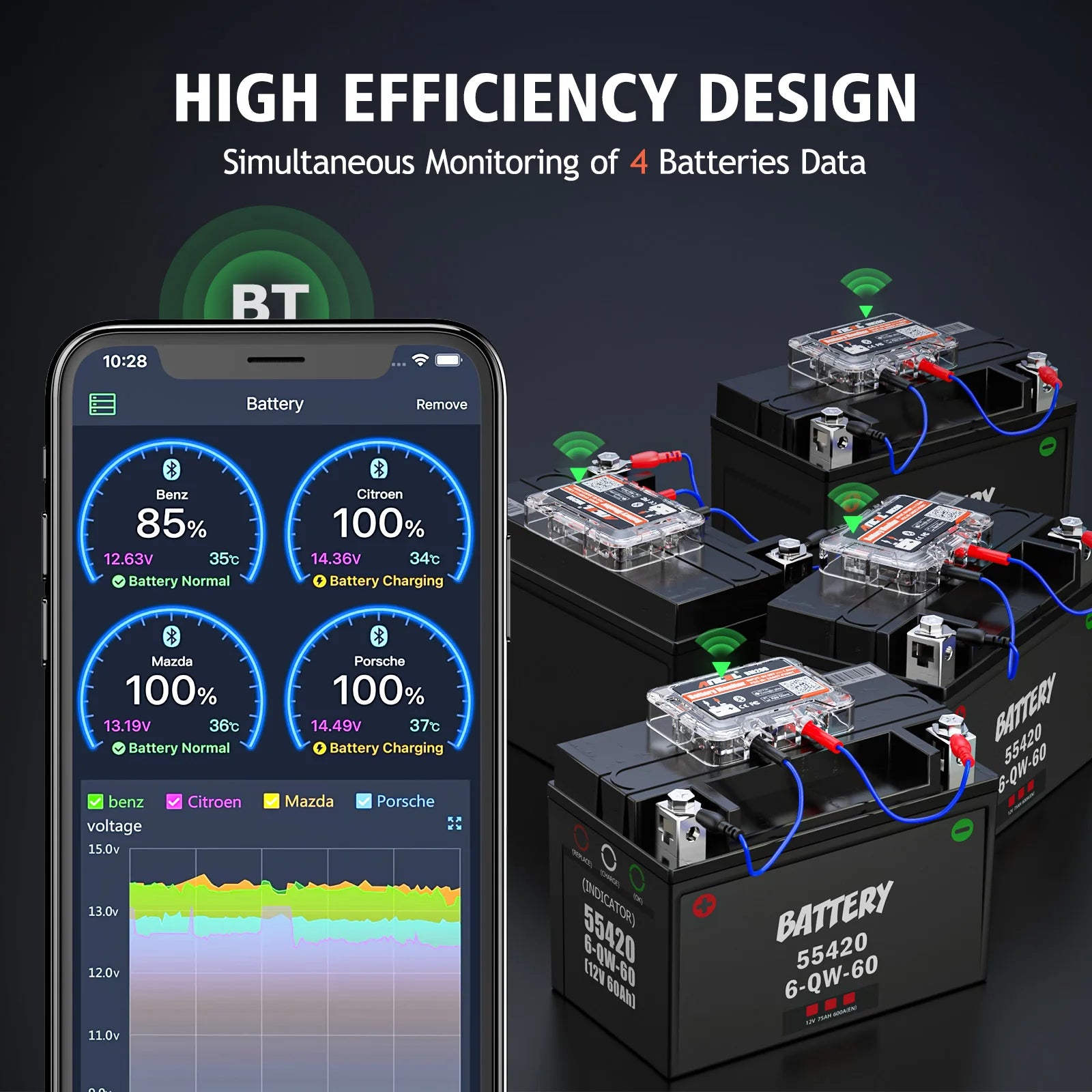

● Support multi-device connection,4 devices can be monitored at the same page.
● Record the track,cost and driving habits of each trip ,can export to Excel fiile.
● Record the packing position automatically and provide the CAR FRNDER function navigation

ANCEL BM200 intelligent Functions

● support online update
● support the sharing of test result
● support problem feedback

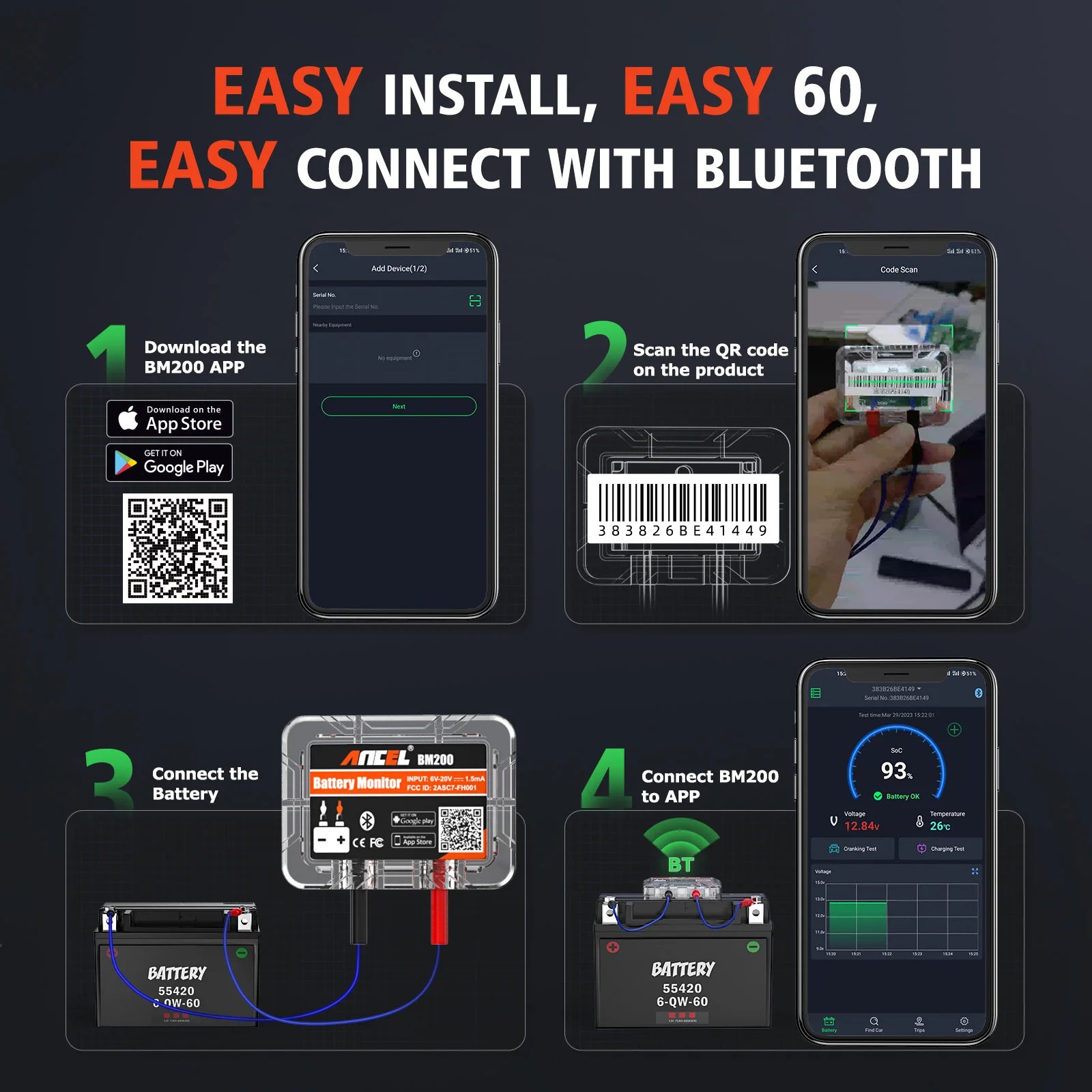

How to download the app

1.Scan the QR code on the product
2.Connect the battery
3.Ultra-Low power consumption
Note:This product requires an account login

Support Mobiles:

All iOS and Android smart phone with Bluetooth 4.0
iOS (iPhone 4S,5, 5C, 5S and later；iPad 2，iPad Air，iPad mini，iPad mini 2 and later)
Android: at least Android 4.3 (support for Bluetooth 4.0)

Currently Supported Languages:

English, Russian, German ,Norwegian,Vietnamese,Chinese

Specifications:

Product Name: Battery Monitor
Bluetooth Version: 4.2
Bluetooth Name: BM200
Input Voltage: DC 6V ~ 20V
Voltage Accuracy: (9V~16V): ±0.03V
Average Working Current: 1.5mA
Working Temperature: 40°C~90°C (-40°F~194°F)
Reverse Connection Protection: Built in
Short-circuit Protection: Built in
Waterproof: IP67
Physical Dimensions: (L)55mm x (W)41mm x (H)12.5mm

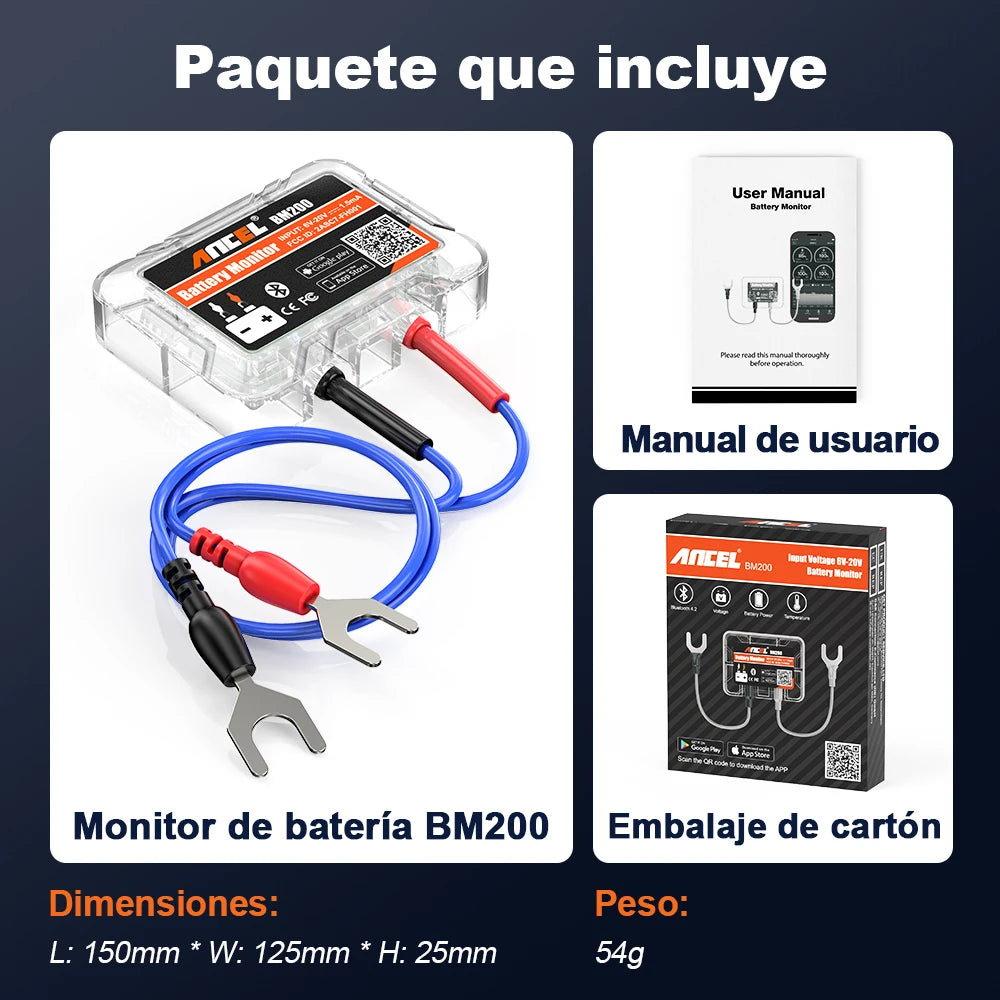

Package List:
1pc x Battery monitor BM200 + 1pc x manual
Carton packaging
Dimensions: Length: 150mm * Width: 125mm * Height: 25mm
Weight: 54g

FAQ AND SOLUTION

· Phenomenon 1:

Need to enter a PIN code for Bluetooth connection ?

· Solution :

When Bluetooth switch is turned on , some mobile phones system will automaticaly list al nearby Bluetooth device name . Please just ignore this PIN code pop - up , this Bluetooth connection no need PIN code . Re - run the app wil automaticaly connect to the device .

· Phenomenon 2:

Bluetooth connect fail ?

· Solution :

Ensure that the Bluetooth switch of the mobile phone is turned on , and there are no other phones nearby to connect the device . Then try to restart the Bluetooth or restart the mobile phone . In addition , if the phone Bluetooth is connected with too many Bluetooth devices , it may alsO cause the Bluetooth not to connect properly .

· Phenomenon 3:

There is no track or parking position for the trip ?

· Solution :

1. Confirm that the GPS switch of the phone is turned on .

2. Confirm that the app has obtained the permission of the location service .

3. Confirm that the app is running and the device is connected .

4. Confirm that the ＂ GPS Track Server ＂ in the Settings of the app is turned on .

5. Confirm that the app can be started by itself and can run in the background . Detail shows at the end of this manual .

· Phenomenon 4:

There is no abnormal alarm notification ?

· Solution :

Go to the settings of the mobile phone and turn on the application notification permission .

· Phenomenon 5:

The display of battery power is inaccurate or no vehicle starting system data ?

· Solution :

Suitable for 12V lead - acid and LiFePO4 starting batteries of vehicle . If there is no in - vehicle usage scenario , such as no engine start behavior , the power may be inaccurate and there is no start data .

· Phenomenon 6:

The vehicle charging system cannot be tested ?

· Solution :

The test needs to be performed during engine running . It supports all ordinary alternators , and does not support smart alternators . If the test still does not work , please check with the vehicle manufacturer whether it is a smart alternator .

· Phenomenon 7:

The fuel cost statistics are inaccurate ?

· Solution :

Check whether the fuel consumption per 100KM and the fuel price are correctly filled in .

· Phenomenon 8:

The position or trajectory is sometimes correct , sometimes incorrect or not obtained ?

· Solution :

If the app can ' t be self - started and run in the background , the location data cannot be obtained . It is necessary to give theapp the permission to self - start and run in the background , this needs to be operated in the settings of the phone .

1. Samsung mobile phone :

(1) Alow background activity

Setings Apps find the BM6 app Battery turn on the switch of ＂ Allow background activity ＂.

(2) Alow self － starting

Setings - Device care - Battery find the BM6 app - turn off the switch of " Put app to sleep ".

2. Huawei mobile phone :

Settings - Apps - App launch - find the BM6 app and select " Manage manualy ＂ Enable " Auto - launch ＂、＂ Secondary launch ＂ and " Run in background ＂ at the same time .
